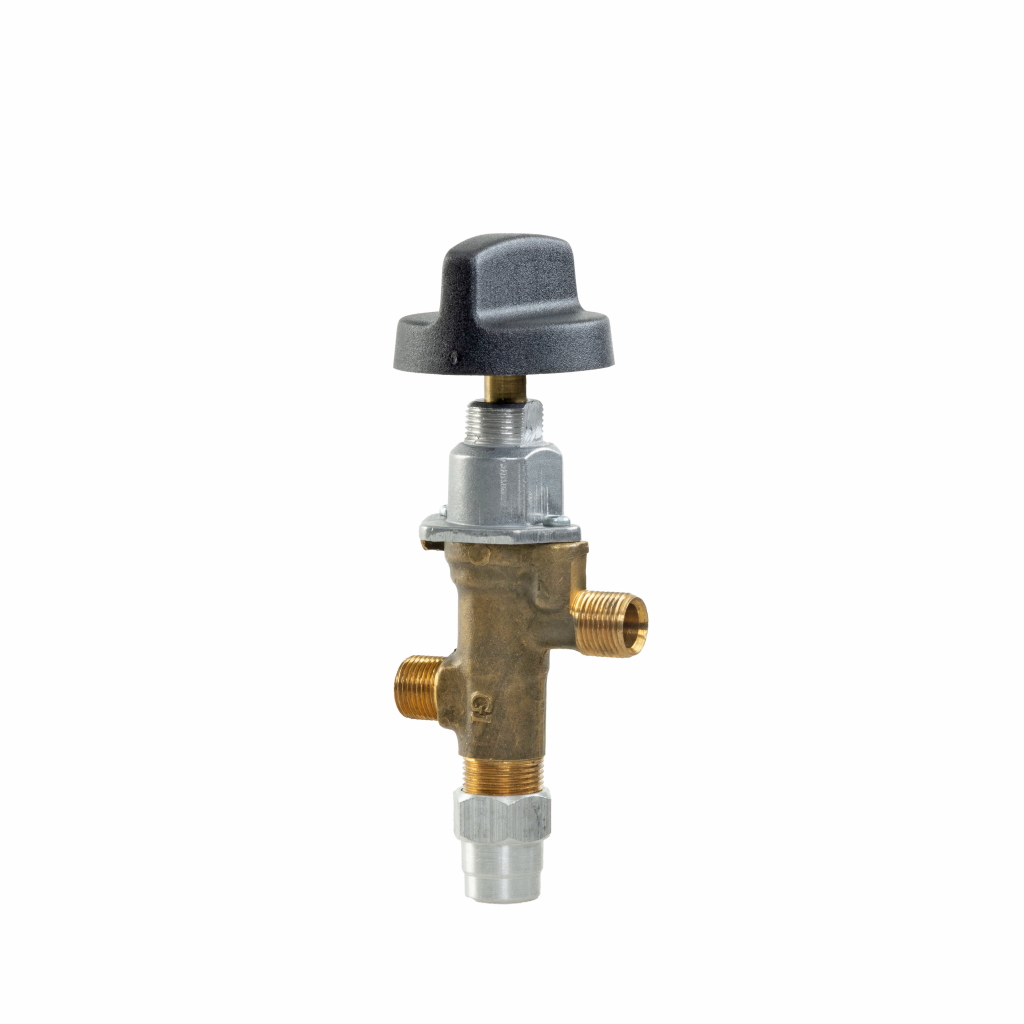

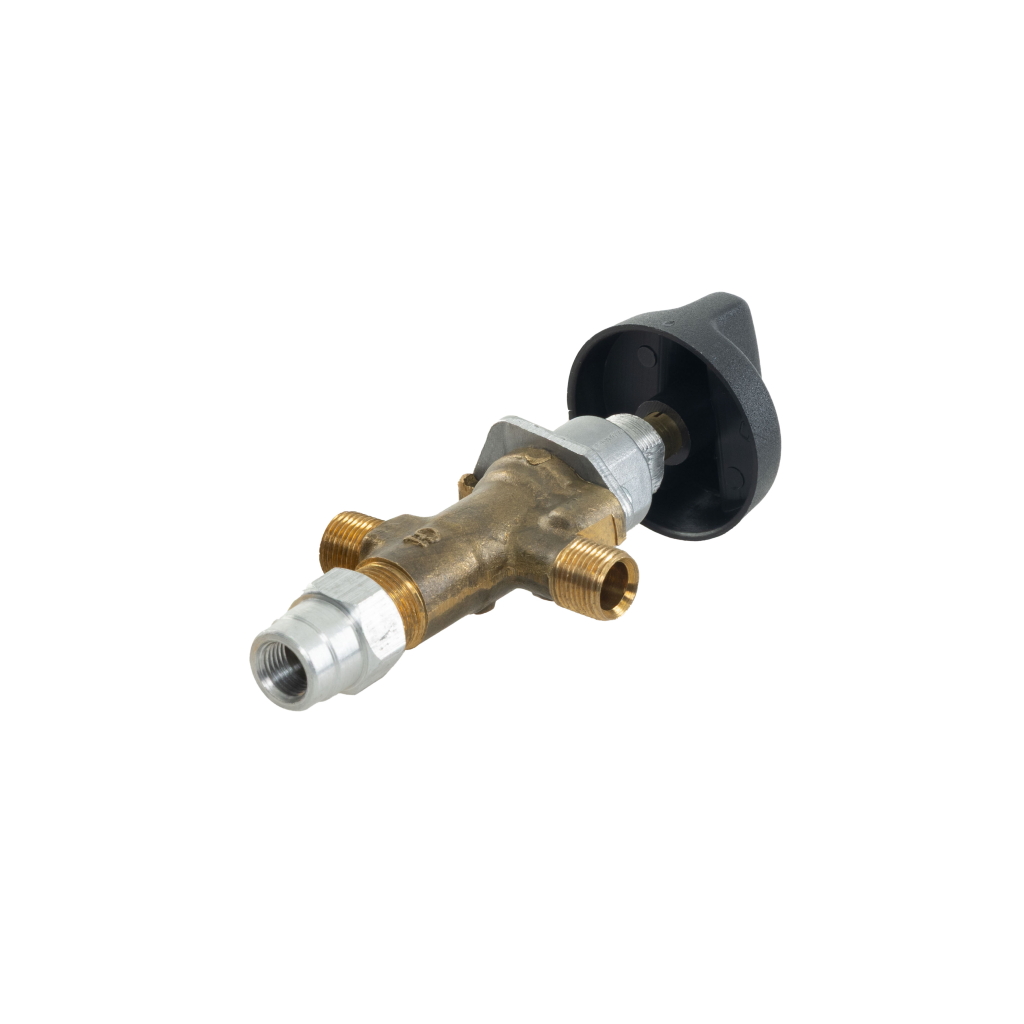

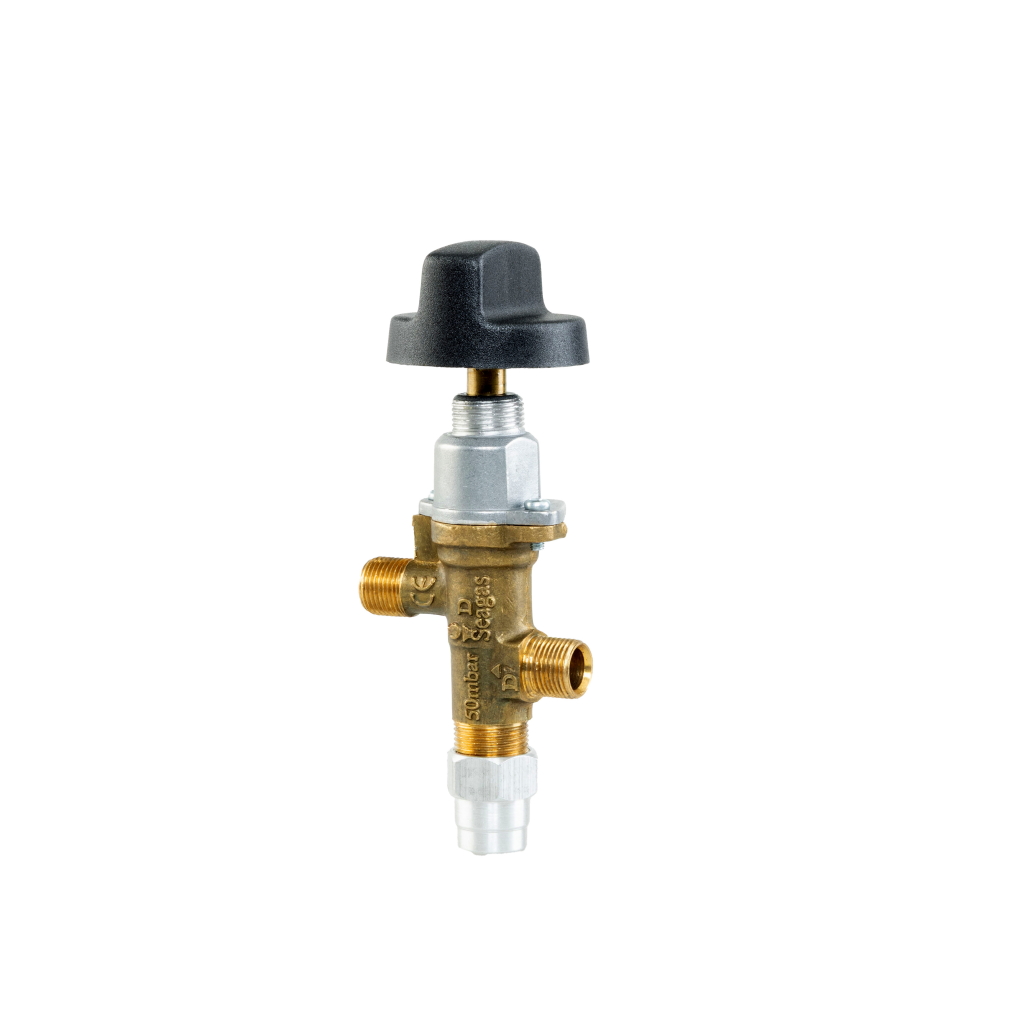

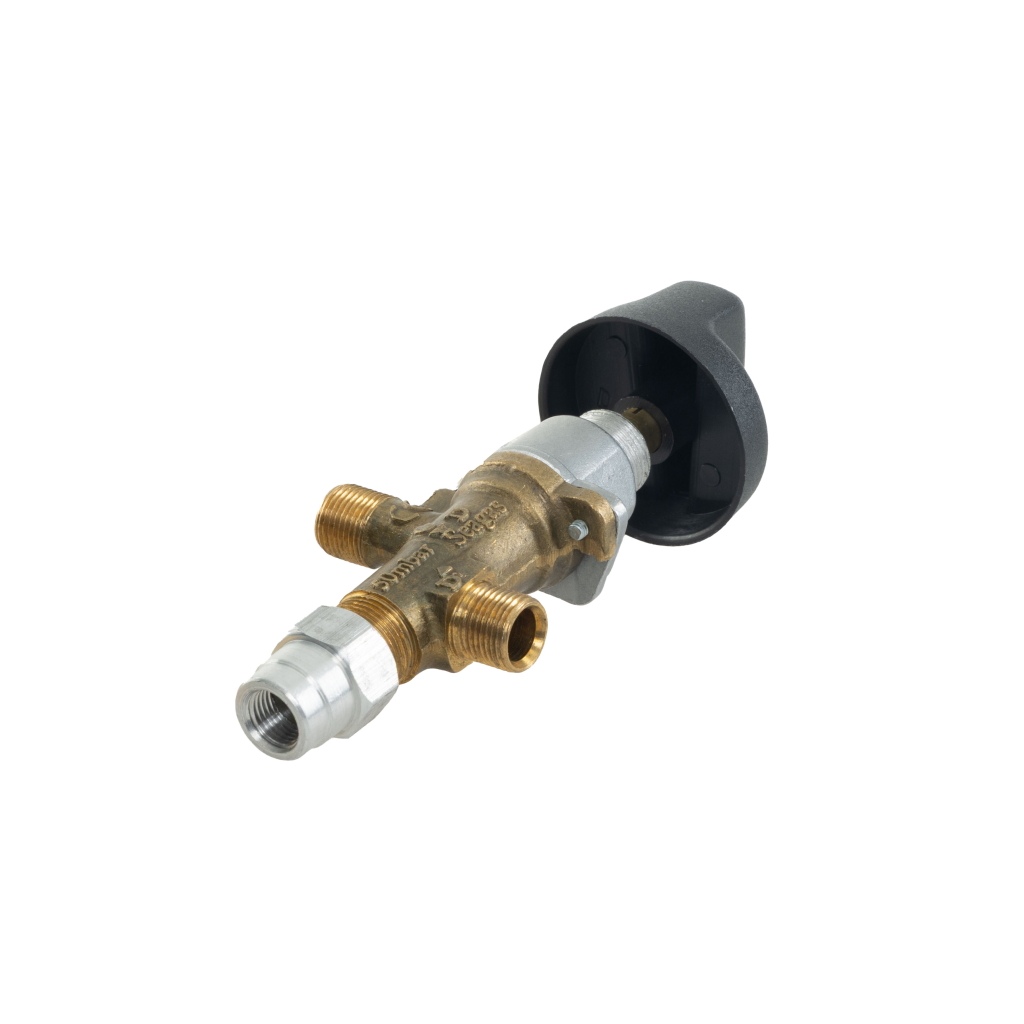

Seagas D2 Gas Control Valve Tap M10 Thermocouple Connection
The Seagas D2 Valve Is A Robust Taper Plug Valve And FSD Control Suitable For A Wide Range Of Catering Appliances. Designed For Gas Fascia Mounting With The Outlet Positioned To Afford Ease Of Access.
Key Features & Benefits
- CE Certified – Compliant With EN125, EN 126 And EN1106 Standards (Certificate No. E60555).
- Maximum Operating Temperature – 0C – 100C.
- Universal Gas Compatibility – Suitable For Both Natural Gas And LPG Appliances.
- Max Flow Rate – 0.38m 3/h On Air At 3 mbar p.d.
- Pressure – Maximum Working Pressure 65 mbar (Test Pressure On line = 150 mbar).
- Magnet – Orkli Magnet No. 20900/7
- Flow Rates (Natural Gas At 20 mbar) –
- Thermocouple Connection – M10
- Inlet Gas Connections – M12 x 1 Compression Connection For 8mm
- Outlet Gas Connections – M12 x 1 Compression Connection For 8mm
Suitable Applications
- For A Wide Range Of Catering Appliances.
