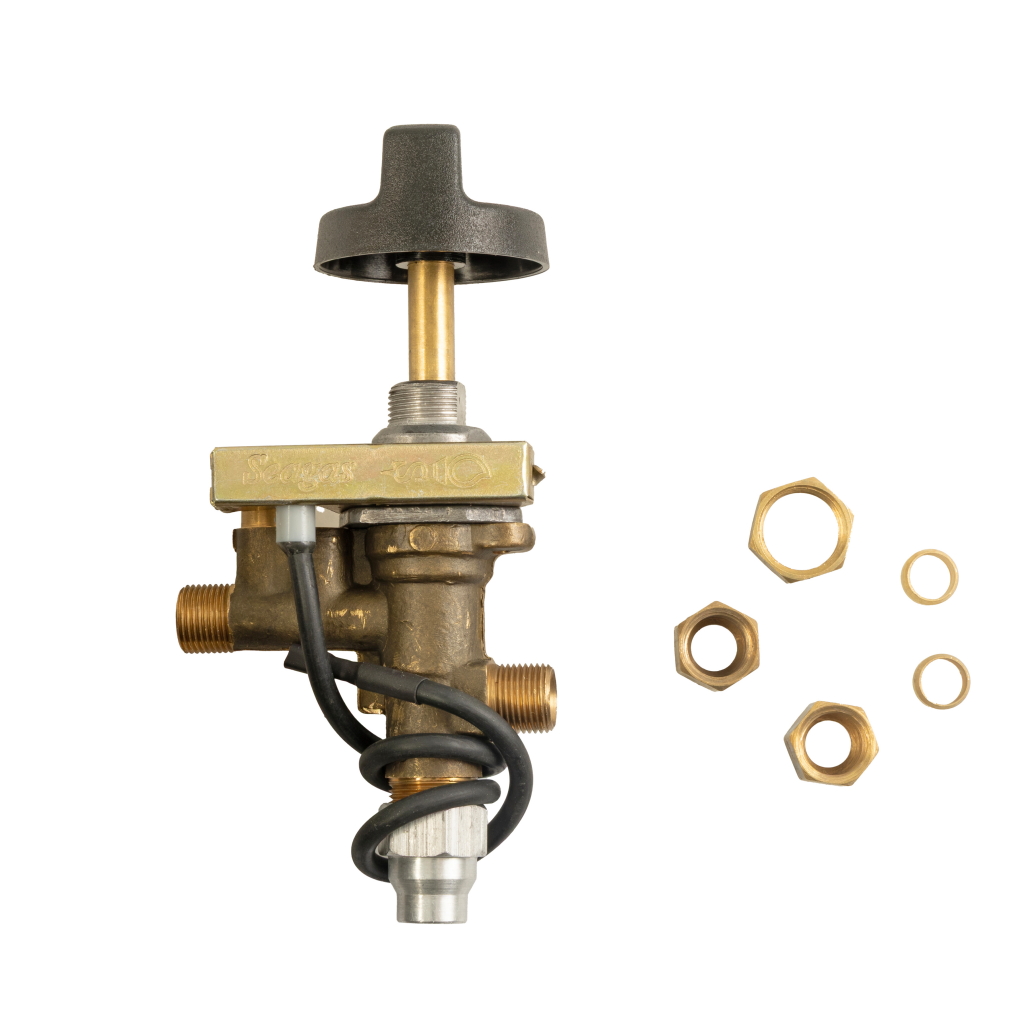

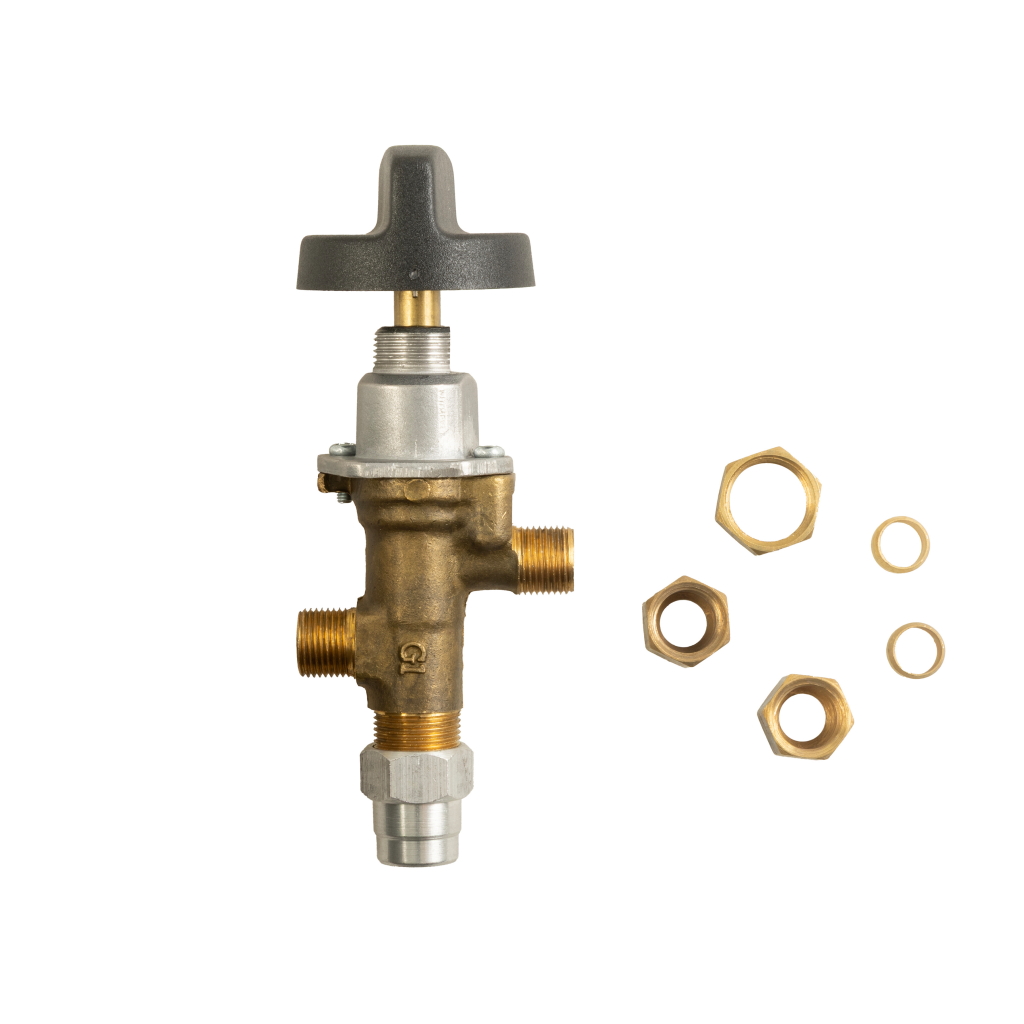

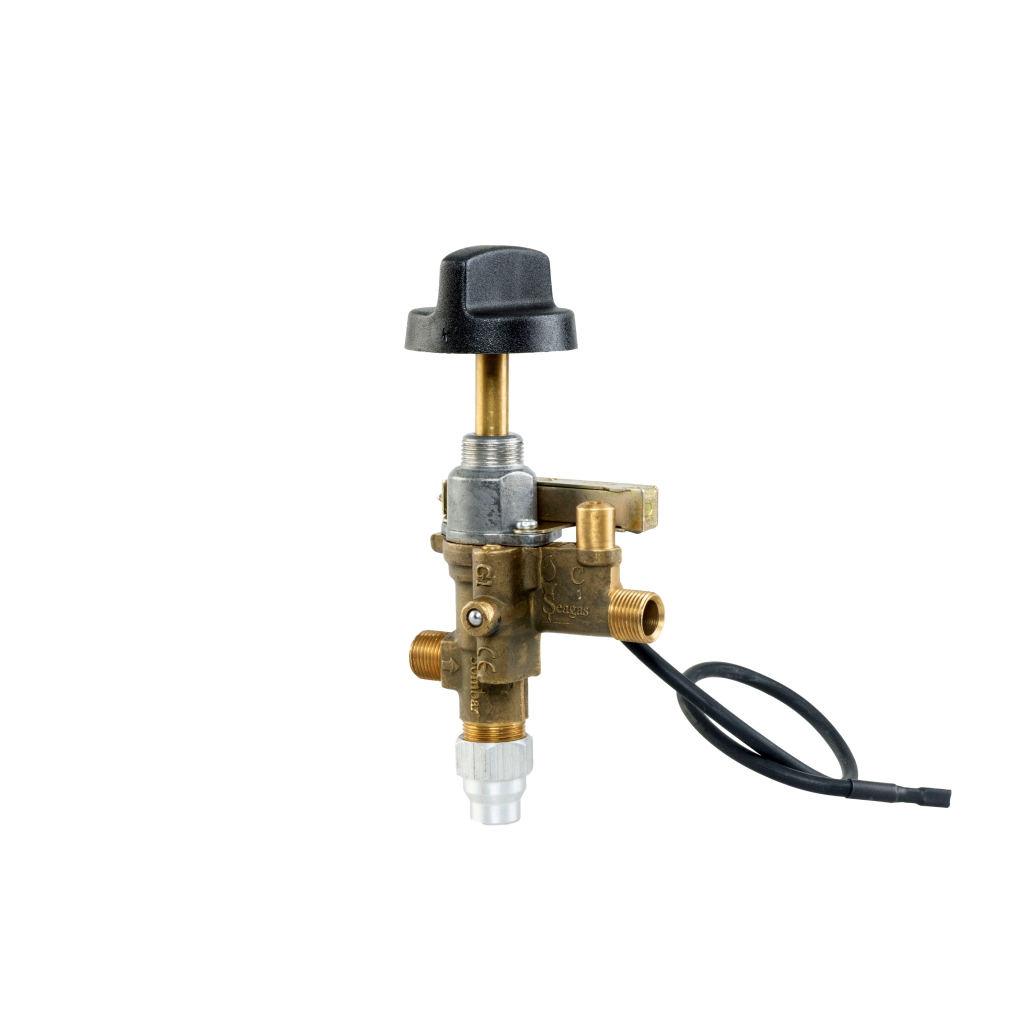

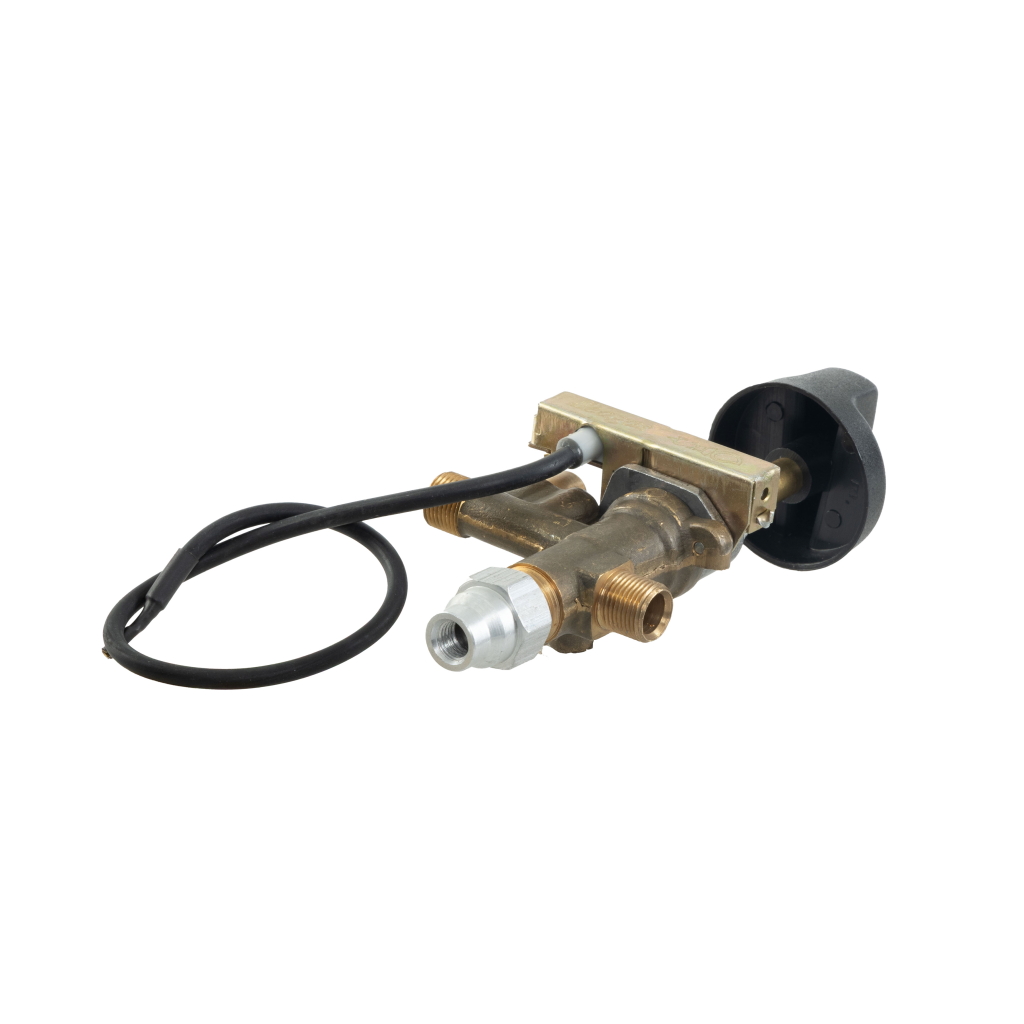

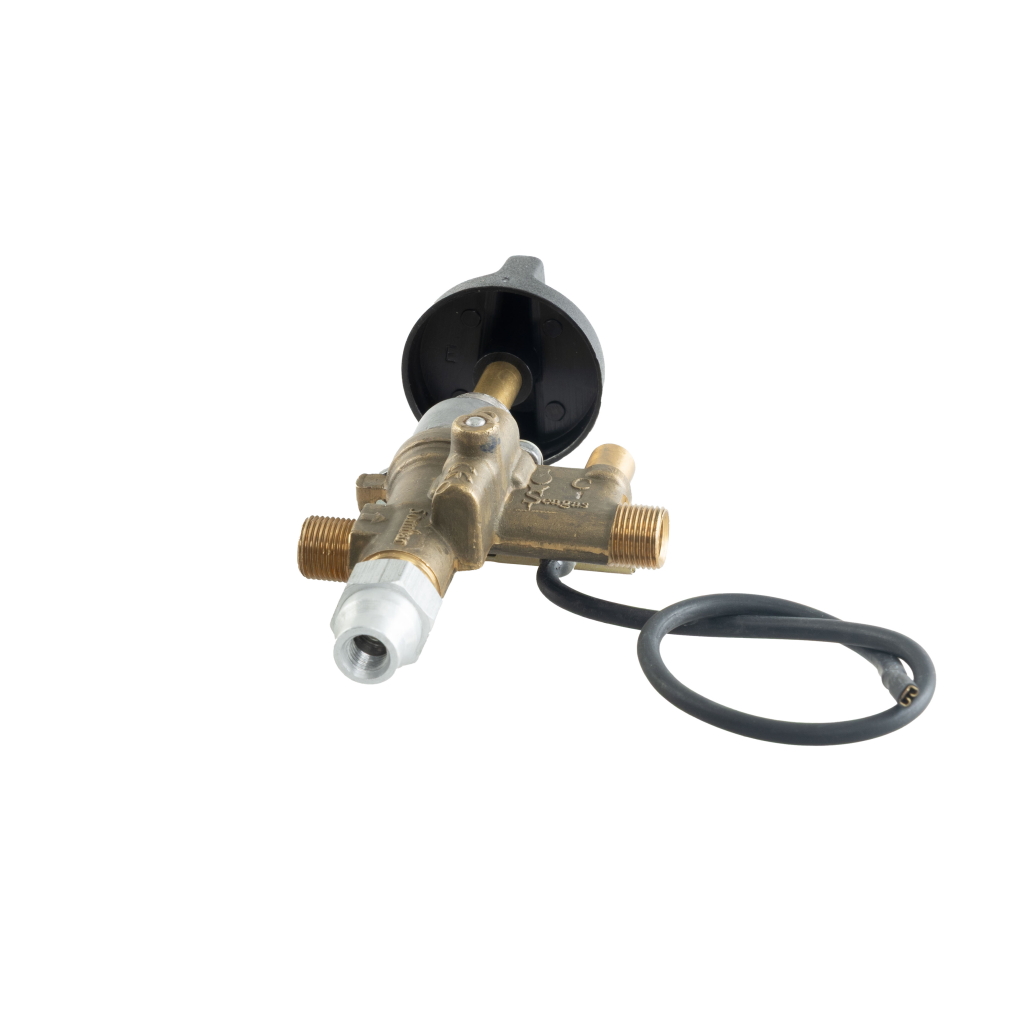

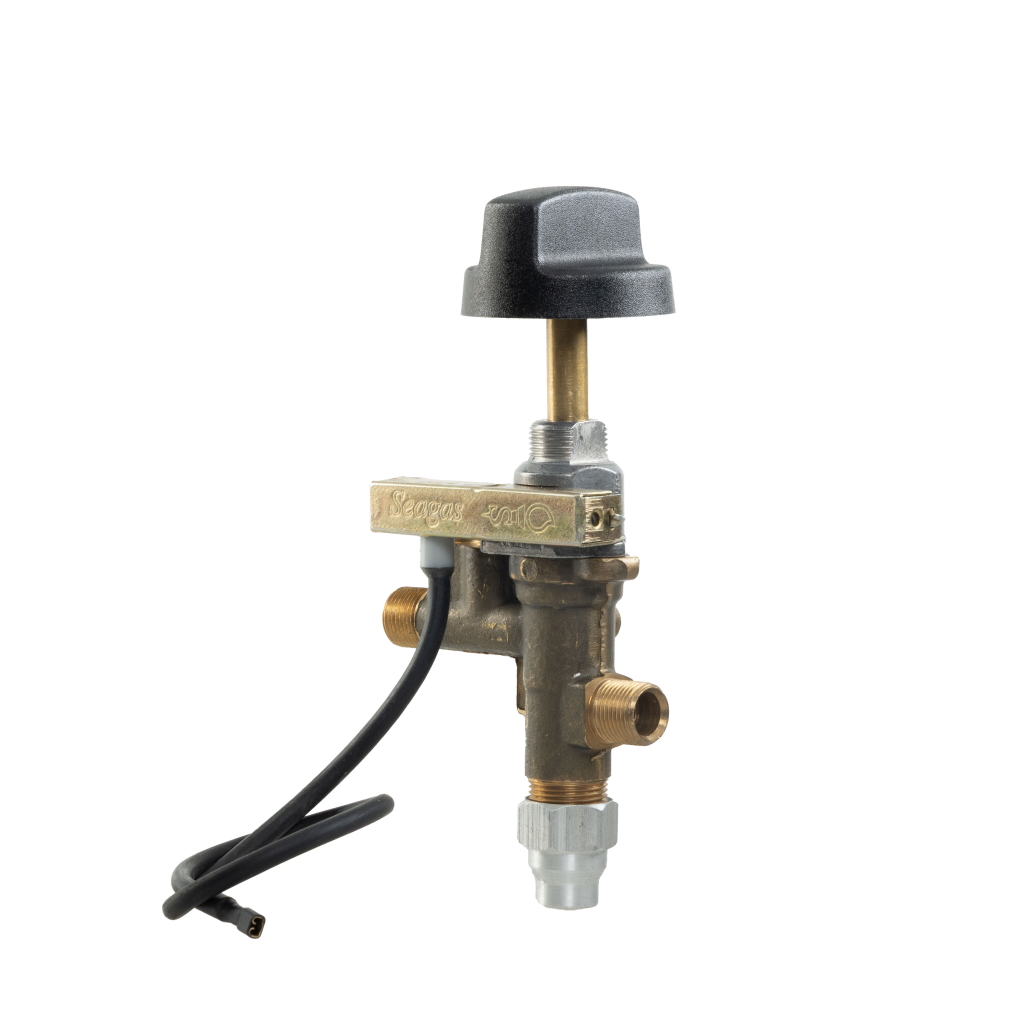

The Seagas C1 Gas Control Tap With Flame Supervision Device (FSD) And Piezo Igniter Is Versatile And CE Certified Gas Control Valve Tap For Use With Ga Fires, Convector Heaters, Decorative Fuel Effect Fires , And A Wide Range Of Domestic And Commercial Gas Appliances.
Designed For Safety, Reliability And Ease Of Use, It Has Precise Gas Flow Control And Rotary Piezo Ignition For Single Handed Operation. The Built In Flame Supervision Device Will Shut Of f The Gas Supply If The Flame Is Extinguished, Protecting The User And Property.
The Complete Kit Comes With Control Knob, Fascia Nutt, Nuts And Olives For Easy Installation.
Key Features & Benefits
- Flame Failure Protection – Cuts Off Gas Supply If Flame Goes Out, Maximum Safety.
- CE Certified – Compliant With EN125, EN 126 And EN1106 Standards (Certificate No. E60555).
- Maximum Operating Temperature – 0C – 80C.
- Universal Gas Compatibility – Suitable For Both Natural Gas And LPG Appliances.
- Rotary Piezo Igniter – Single Handed Ignition With Integrated Piezo Spark System.
- Pressure – Maximum Working Pressure 65 mbar (Test Pressure On line = 150 mbar).
- Magnet – Orkli Magnet No. 20900/7
- Flow Rates (Natural Gas At 20 mbar) –
- Connections – Inlet/Outlet : 8mm o.d Tube | Pilot : 4mm o.d Tube | Thermocouple : M8.
- Ignition Lead – 265mm
Suitable Applications
- Decorative Fuel Fire Effects
- Convector Heaters
- Gas Fires
- Domestic And Commercial & Cooking Appliances
