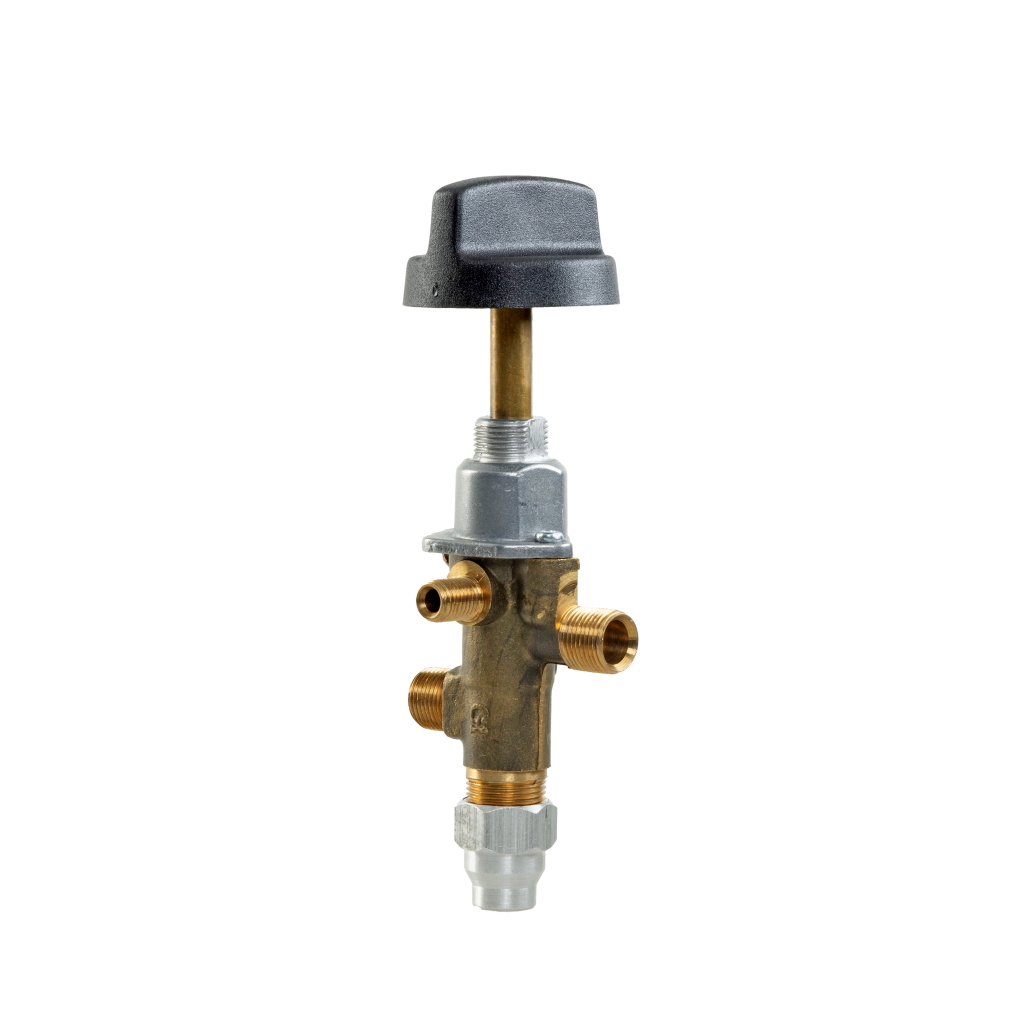

Seagas B1 Gas Control Valve Tap With Flame Supervision Device
This Valve Tap has flame failure protection And Will Give A Variable Gas Flow Between Low And Full Rates.
Flow Rates For Natural Gas At 20 mbar. : Full On 0.35 0.35 m³/h.
Operating Sequence: Off, Pilot + Maximum Flow, Pilot + Minimum Flow
Connections : Inlet And Outlet Are For 8mm o.d Tube: Pilot Is For 4mm o.d Tube : Thermocouple Is M8.
| Standards | EN 125, EN 126 and EN 1106 |
| Connection | 8 mm inlet & outlet, 4 mm pilot |
| Max. Operating Temperature | 0 to 100°C |
| Size | 550 mm |
| Suitable Application | Decorative fuel effect fires, but are also suitable for a wide range of domestic and commercial heating and cooking appliances. For Natural Gas and LPG. |
| Type | Gas Tap |
