CE Certified to the relevant requirements of EN 125, EN 126 And EN 1106 (Certificate No.E6055)

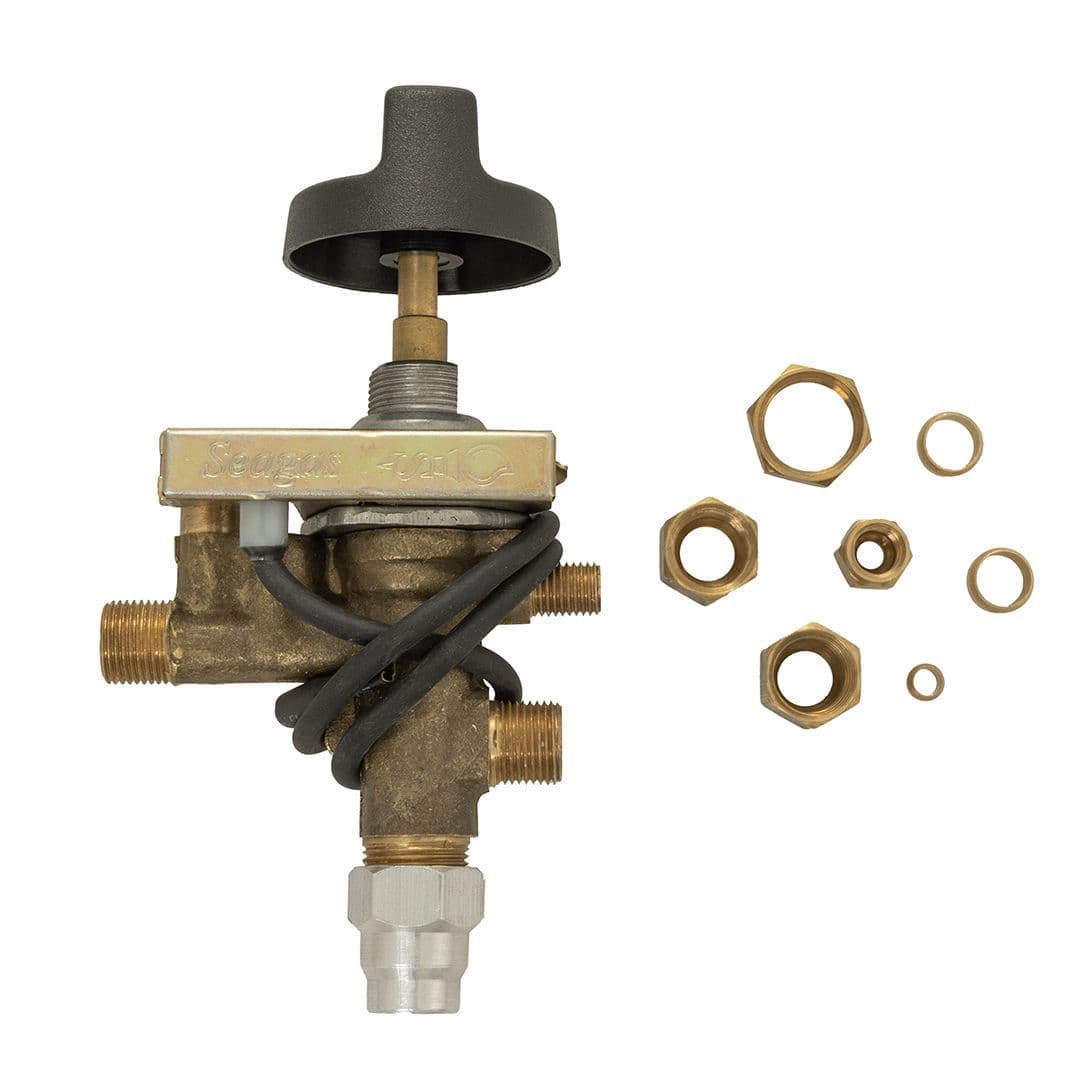

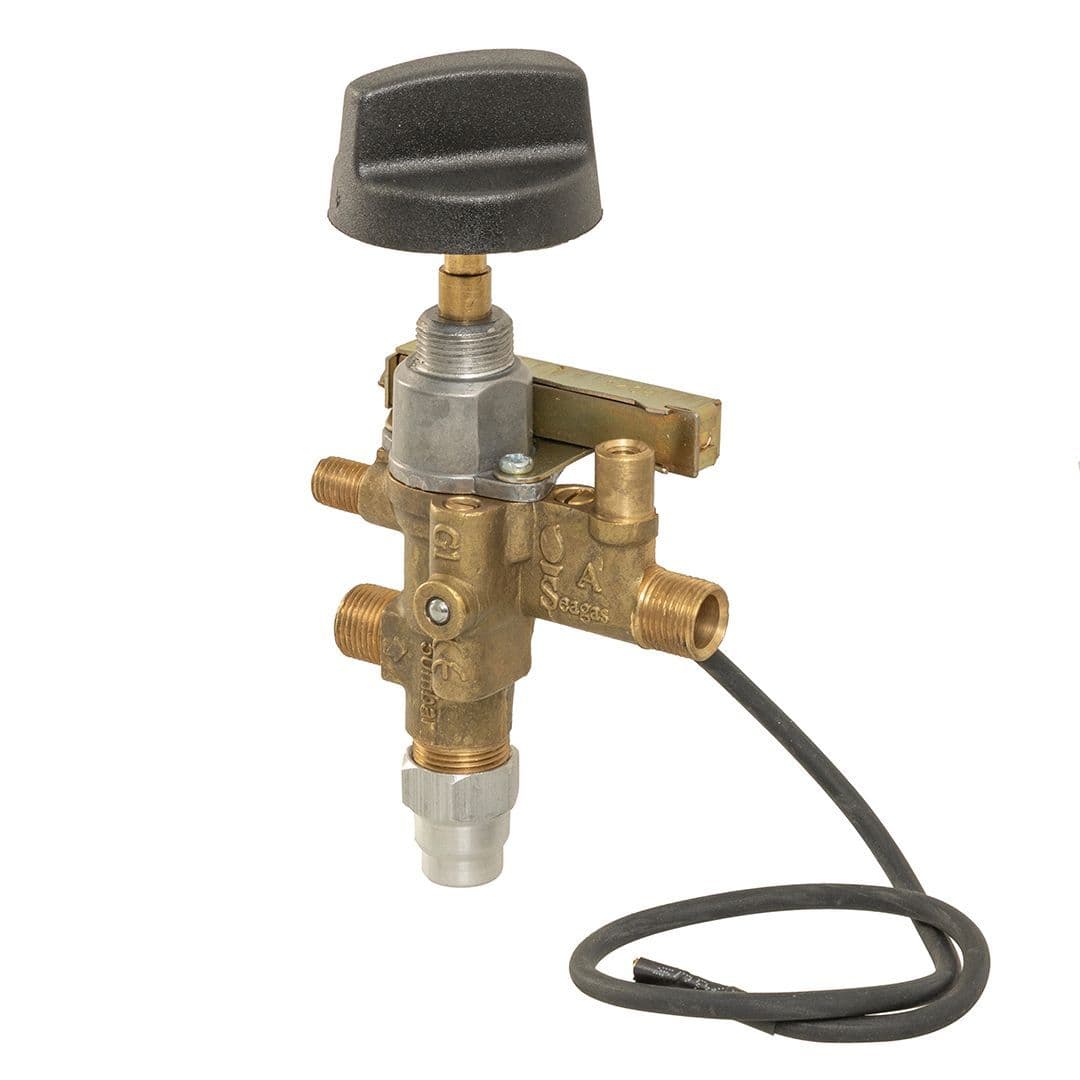

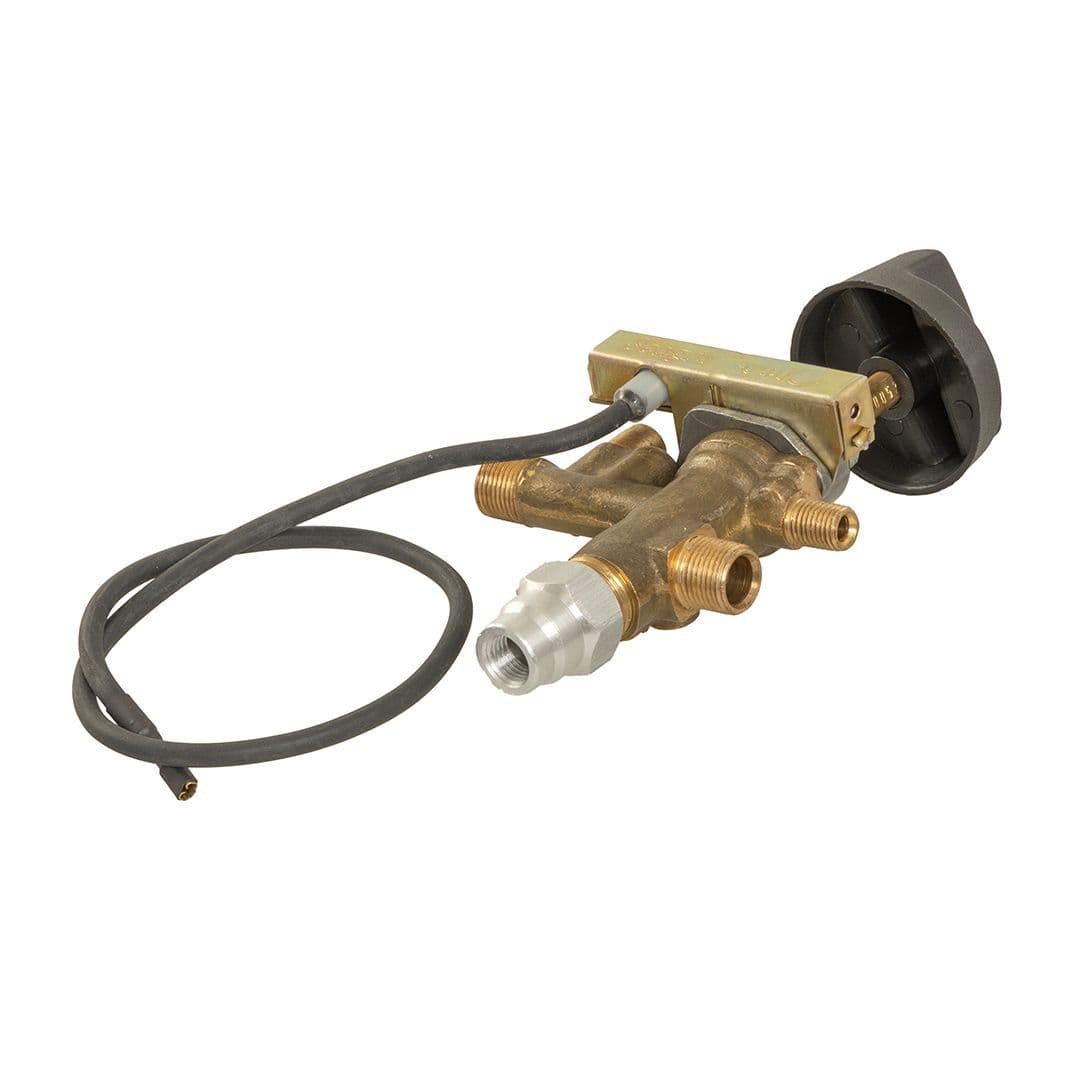

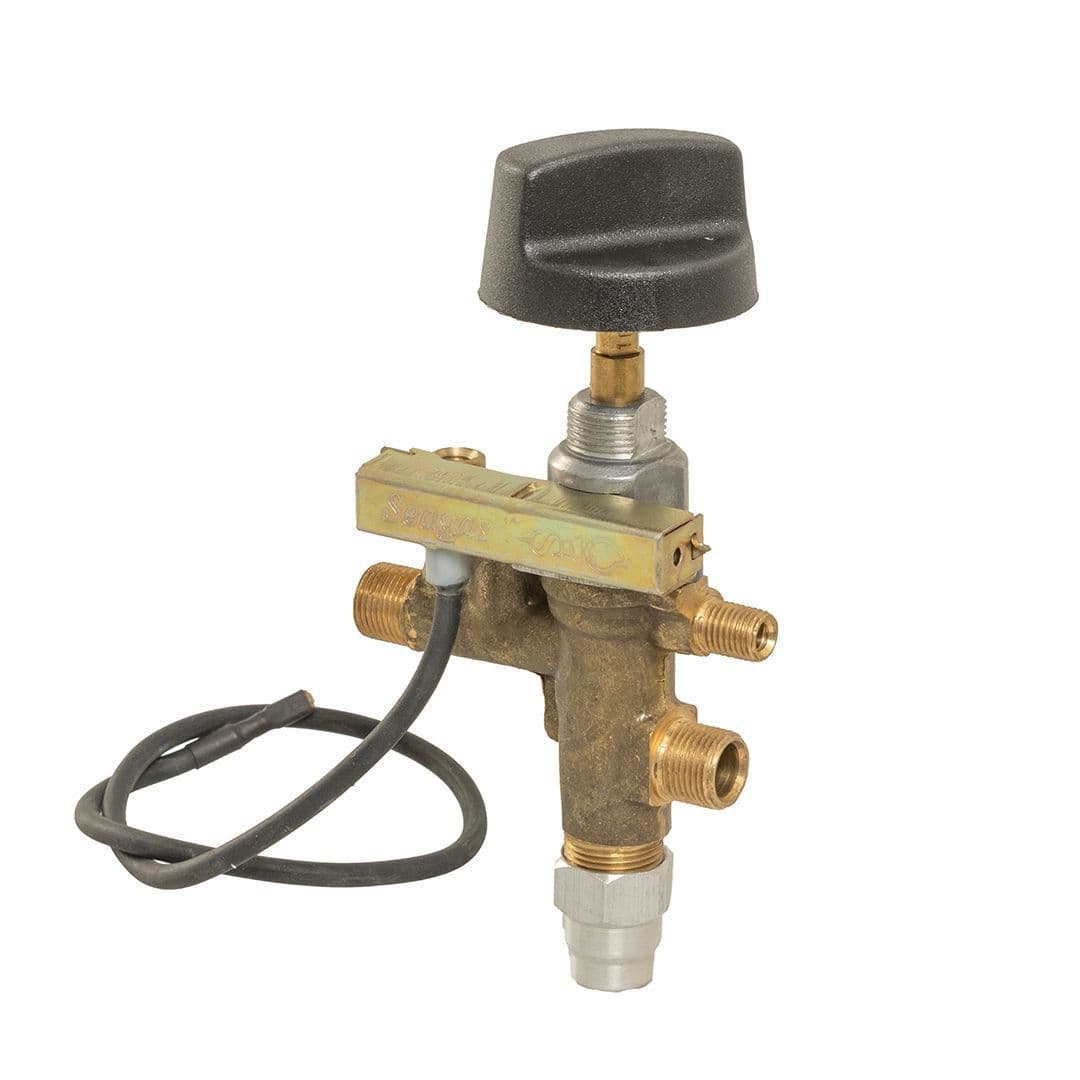

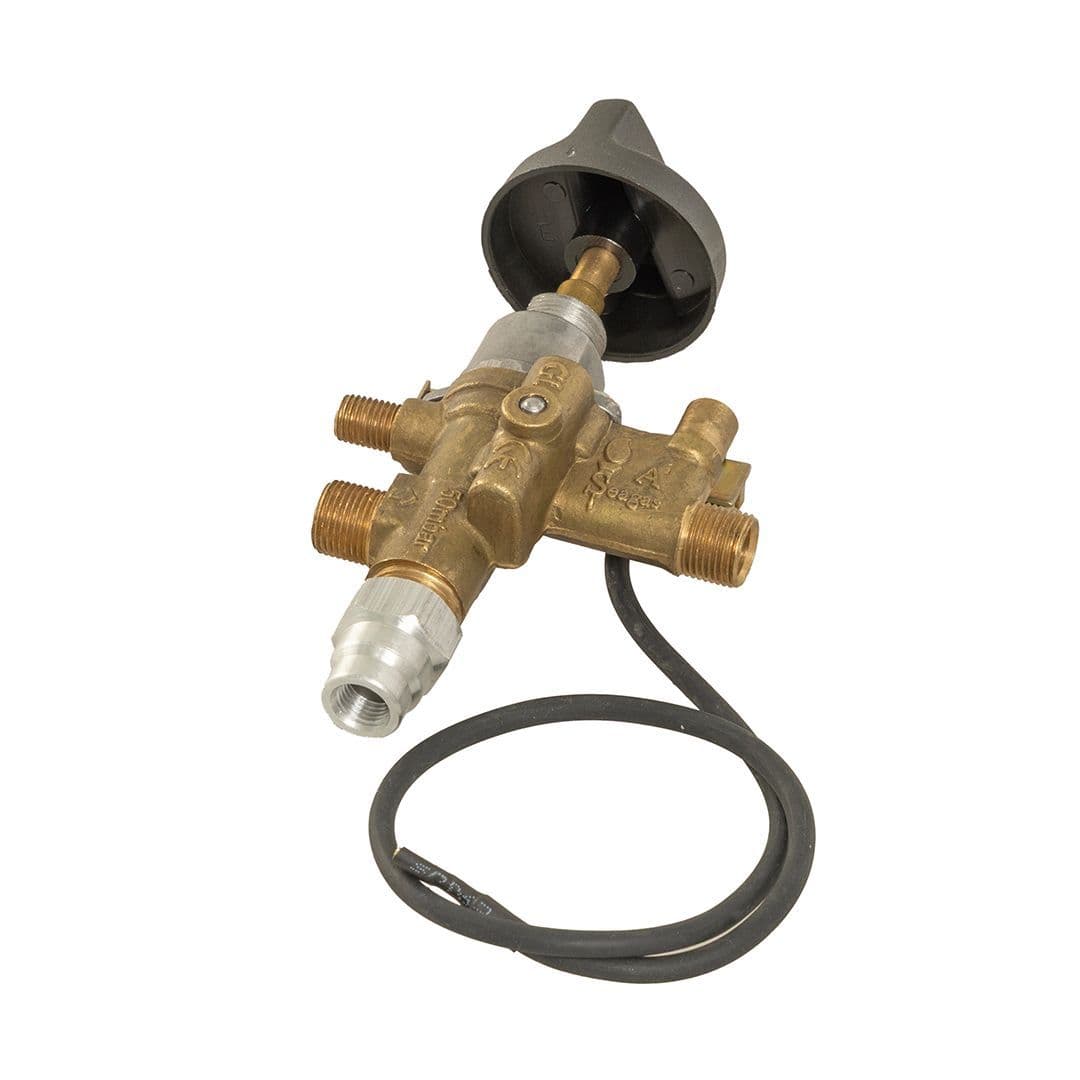

This Valve Tap has Flame Failure protection, rotary Piezo Igniter which gives single handed operation for Ignition and will give a variable gas flow between low and full rates.
Flow rate for Natural Gas at 20 mbar: Full on 1.5 m³/h.; LOW (adjustable) 0.02 to 0.55 m³/h.
Operating Sequence: Off, Pilot + Ignition, Pilot + Minimum Flow, Pilot + Maximum Flow.
| Standards | EN 125, EN 126 and EN 1106 |
| Connection | 8 mm inlet & outlet, 4 mm pilot |
| Max. Operating Temperature | 0 to 10°C |
| Size | 550 mm |
| Suitable Application | Decorative fuel effect fires, but are also suitable for a wide range of domestic and commercial heating and cooking appliances. For Natural Gas and LPG. |
| Type | Gas Tap |
