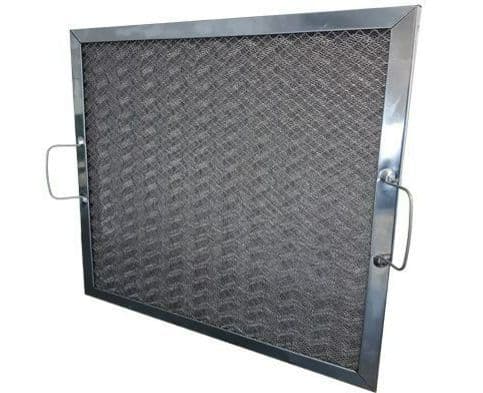

Mesh Grease Filter – 445mm

These filters are designed for use in commercial kitchens and ventilation from food preparation areas where their primary function is to reduce grease carry over from the cooking area.

These Filters are rated at 1.5m – where the pressure drop is 15Pa for 45mm filters and less than 10Pa for 20mm filters.

Constructed with an aluminium frame and galvanised mesh.

Construction

These filters are manufactured by rolling a metal frame which holds a series of expanded and corrugated metal layers. These layers create an impingement barrier which catches grease from the extract air.

Features

• Strong rolled frame construction
• Scratch-free outer surface
• Fold down handles – easy to remove from the canopy for cleaning
• Drain holes – allows grease to run from filter to grease collection tray
• Low pressure drop
